Can I Upgrade my device Legion T530-28ICB.

Hi Support Team,

I have a desktop computer and I want to upgrade device parts like (CPU, GPU and motherboard).

Can I do that? changing motherboard?

The machine type-model number is (90L3007JKS)

Regards,

Wael



0
0

Re:Can I Upgrade my device Legion T530-28ICB.

your PC specification : Link https://psref.lenovo.com/Detail/Legion/Lenovo_Legion_T53028ICB?M=90L3007JKS

- Your current PC is very well balanced, but to have more FPS in games you should change the dedicated graphics card and power supply for example NVIDIA GeForce RTX 2070 and 500W;
[ if you want to change the motherboard to install a newer generation processor, my advice would be to focus on buying a new PC especially since DDR5 memory has now appeared;
[ an example of a PC would be the one from the link below, the problem is that it has not yet appeared in your region : link

https://psref.lenovo.com/Detail/Legion/Lenovo_Legion_T7_34IAZ7?M=90S10009US

( it will be a bit more expensive but it will keep you longer in terms of performance

__________________________________________________________________________________IdeaCentre Mini 01IRH10R
0
0

Re:Can I Upgrade my device Legion T530-28ICB.

Thanks tt177 for your replay.

I would ask you can  I install RTX 30 series in this PC (we will also change power to 700W or 650W)

Can I install the 11th generation of  processors (Core i9-11900F for example)?

Thanks again for your replay.

Regards.

0
0

Re:Can I Upgrade my device Legion T530-28ICB.

@Wael89 wrote:



Can I install the 11th generation of  processors (Core i9-11900F for example)?



- no, you can't install Core i9-11900F, you should also change the motherboard to install 11th generation processors, which would cost more;

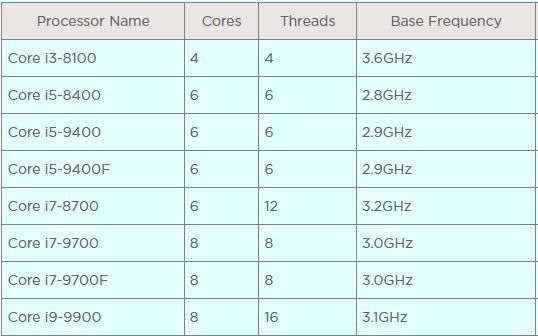

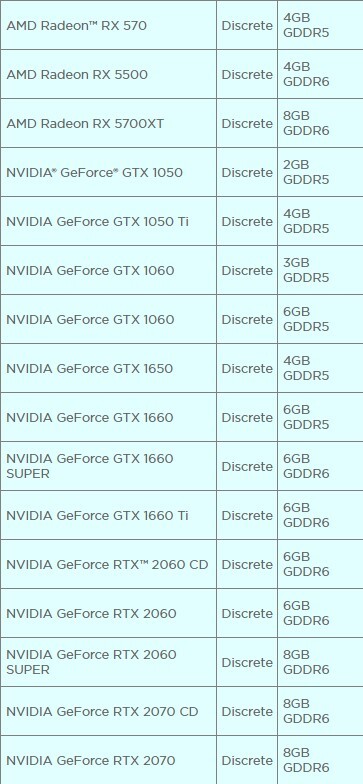

Below are the processors and graphics cards tested to be compatible with your Lenovo PC:

- for some processors and graphics cards you also need to change the power supply .



@Wael89 wrote:



I would ask you can  I install RTX 30 series in this PC (we will also change power to 700W or 650W)



- in theory, an nvidia RTX 30 series graphics card could be installed, because you have the right slot, only you have to pay attention to the length of the graphics card and to have the latest BIOS installed.

Expansion Slot

  • One PCIe 3.0 x16, full-length (< 312mm) full-height (< 111mm)

[ it would be best if a member of this forum who has the same PC as yours and changed the graphics card with an RTX 30 series, can confirm that it works;
[in Lenovo's specifications the most powerful graphics card you can install is the NVIDIA GeForce RTX 2070;
(I also found on this forum on WorkStations PCs that the RTX 3090 card did not work on systems that did not have this graphics card in specifications;
(It's up to you to decide if you want to buy an RTX 30 series, it would be good to be able to return it if it doesn't work

__________________________________________________________________________________IdeaCentre Mini 01IRH10R
1
1

Can I Upgrade my device Legion T530-28ICB.

PCIe 4.0 is backward compatible. It's also forward compatible. So, you can insert PCIe 4.0 expansion cards into PCIe 3.0 slots, but your data transfer rate will be limited by the slower speeds of PCIe 3.0
__________________________________________________________________________________IdeaCentre Mini 01IRH10R
1
1

Re:Can I Upgrade my device Legion T530-28ICB.

Hey, what about motherboards? Since the case is really specific and cant remove the back of it? I want to change the PSU, GPU, motherboard and the RAM. (Still looking for PSU ,GTX1660 Super for GPU, still looking for MOBO, and 2x8 Silicon power)



Thanks in advance.

0
