TB3 adapter not working Ideapad 720s

2018-09-23, 13:30 PM

Hello,

I got the Ideapad 720s 15IKB and I wanted to hook it up with 2 external monitors (1440p and 1080p)

So I bought this adapter because my laptop has TB3 input.

Currently I connect only 1 monitor and it doesnt work at all :smileysad:

Any suggestions? I chose my laptop with TB3 for this exact purpose.. Please help

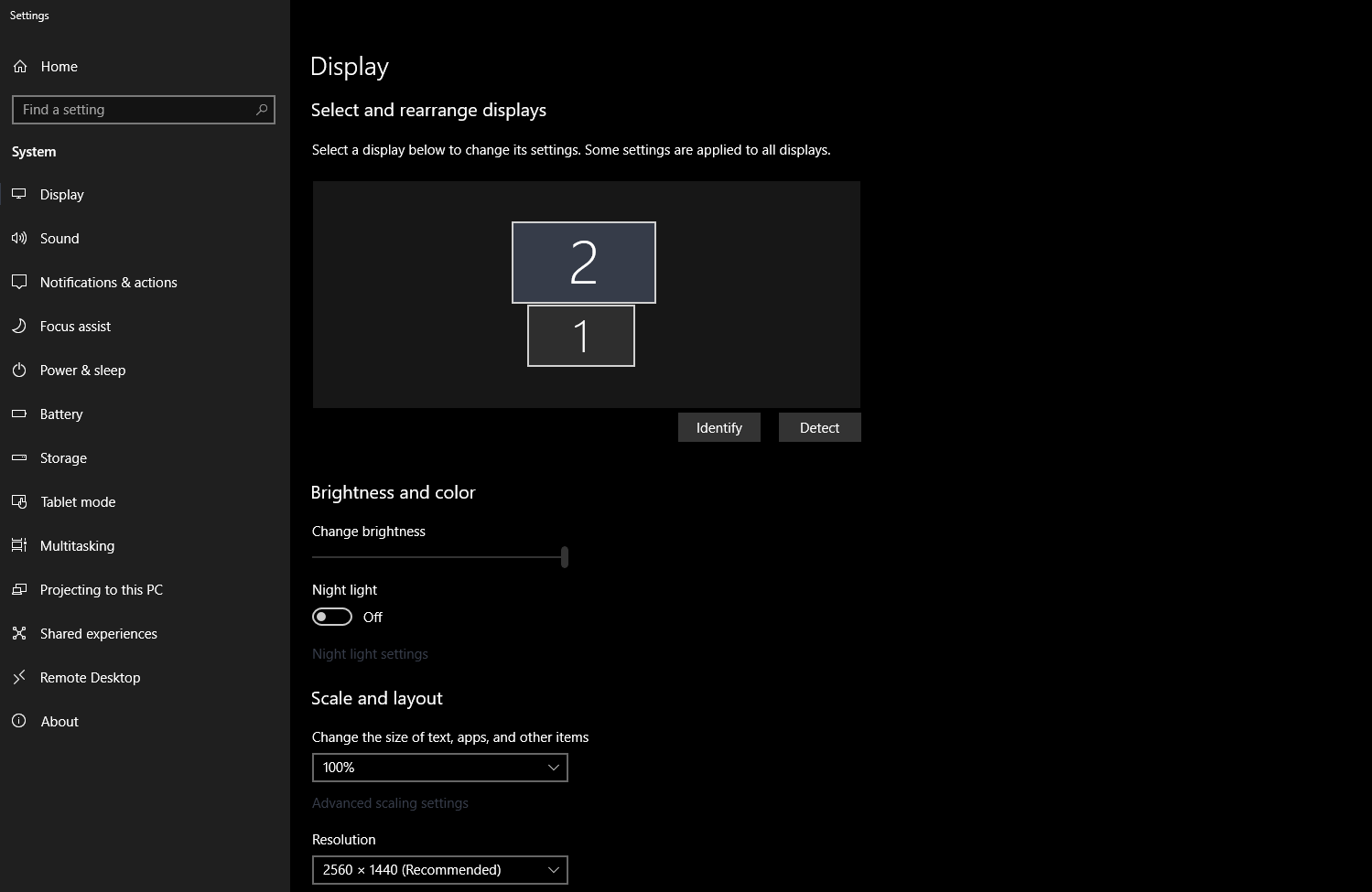

Update: as for right now, when I connect 1 1440p monitor, my laptop detects it but my monitor's screen is black (as it is off)

Solved! See the solution
Reply
Options

402 Posts

08-02-2018

US

163 Signins

956 Page Views

  • Posts: 402
  • Registered: ‎08-02-2018
  • Location: US
  • Views: 956
  • Message 2 of 8

Re: TB3 adapter not working Ideapad 720s

2018-09-23, 22:10 PM

Hi Mark_94!



Welcome to the Community Forums!



Checking the specification of Ideapad 720s, it supports Display Port 1.2a, https://psref.lenovo.com/syspool/Sys/PDF/Lenovo%20Laptops/ideapad%20720S%20(15_)/ideapad_720S_15.pdf. However, you need to have an active DisplayPort to HDMI / DVI adapter or cable for it to work. https://www.startech.com/faq/displayport_converter_dp_multi_mode



Did someone help you today? Press the star on the left to thank them with a Kudo!
If you find a post helpful and it answers your question, please mark it as an "Accepted Solution"! This will help the rest of the Community with similar issues identify the verified solution and benefit from it.

Follow us @LenovoSupport on Facebook and Twitter!

Reply
Options

5 Posts

08-01-2018

IL

15 Signins

95 Page Views

  • Posts: 5
  • Registered: ‎08-01-2018
  • Location: IL
  • Views: 95
  • Message 3 of 8

Re: TB3 adapter not working Ideapad 720s

2018-09-24, 3:09 AM

I've updated original post, please check it again.

Bottom line, I dont understand why i need hdmi adapter if I have a cable that both ends are DP ( and my monitor has mini-dp input).

Reply
Options

619 Posts

08-02-2018

US

302 Signins

2148 Page Views

  • Posts: 619
  • Registered: ‎08-02-2018
  • Location: US
  • Views: 2148
  • Message 4 of 8

Re: TB3 adapter not working Ideapad 720s

2018-09-24, 4:14 AM

Dual Mode Display port has limitations and it is unavailable for USB-C ports. Also, the description of the adapter that you purchase clearly states that



"Not all computers (such as the Lenovo Yoga 720) support dual displays over Thunderbolt 3."



Regards,



Did someone help you today? Press the star on the left to thank them with a Kudo!
If you find a post helpful and it answers your question, please mark it as an "Accepted Solution"! This will help the rest of the Community with similar issues identify the verified solution and benefit from it.

Follow us @LenovoSupport on Facebook and Twitter!

Reply
Options

5 Posts

08-01-2018

IL

15 Signins

95 Page Views

  • Posts: 5
  • Registered: ‎08-01-2018
  • Location: IL
  • Views: 95
  • Message 5 of 8

Re: TB3 adapter not working Ideapad 720s

2018-09-24, 4:21 AM
I dont have the Yoga, mine is Ideapad 720s . You think my laptop cannot be connected to 2 external monitors?
Reply
Options

619 Posts

08-02-2018

US

302 Signins

2148 Page Views

  • Posts: 619
  • Registered: ‎08-02-2018
  • Location: US
  • Views: 2148
  • Message 6 of 8

Re: TB3 adapter not working Ideapad 720s

2018-09-24, 6:40 AM

Sorry for the confusion. The statement above is also applicable to Ideapad 720s. I'm afraid that you won't be able to connect 2 monitors using an adapter as it is the limitation of the USB-C. Sending Display port signals over USB-C connection does not include the support for Dual-Mode. An active Display Port on the laptop is needed for it to work.



Did someone help you today? Press the star on the left to thank them with a Kudo!
If you find a post helpful and it answers your question, please mark it as an "Accepted Solution"! This will help the rest of the Community with similar issues identify the verified solution and benefit from it.

Follow us @LenovoSupport on Facebook and Twitter!

0 person found this solution to be helpful.

This helped me too

Reply
Options

5 Posts

08-01-2018

IL

15 Signins

95 Page Views

  • Posts: 5
  • Registered: ‎08-01-2018
  • Location: IL
  • Views: 95
  • Message 7 of 8

Re: TB3 adapter not working Ideapad 720s

2018-09-24, 11:45 AM

That's a shame.. I bought my laptop with tb3 for this exact reason.. Im very disappointed...

Anyway, thanks for the help!

Reply
Options

16 Posts

08-03-2018

US

88 Signins

488 Page Views

  • Posts: 16
  • Registered: ‎08-03-2018
  • Location: US
  • Views: 488
  • Message 8 of 8

Re: TB3 adapter not working Ideapad 720s

2018-11-27, 0:13 AM

Yeah, the trick here is TB3 gives OEMs a choice of single or dual-lane PCIE implementation, and at the price point of the 720S, only single lane is supported.  Also, last I checked, Lenovo is still on TB NVM v5, while the latest release is NVM 18....!  So you're getting a poor-mans TB, albeit it works well with one display.  You would need an external GPU to drive two displays.
