ThinkPad X1 Yoga Gen 6: Future Perfect?

2021-03-15, 16:33 PM

[ ThinkPad X1 Yoga Gen 6 - images Lenovo - edited ]


The tech world never sits still. Capabilities and capacities – and bang for the buck – keep improving. Somehow, requirements do too. Processing power, RAM and storage capacity, offset by the tug-of-war between upgradability, battery runtime, footprint, thickness, and weight. Even display density and connectivity.



Nothing is ever “future proof” but given the eye-popping specs of the the X1 Yoga Gen 6 that just landed on my bench, I think we can call it “future friendly”. And then some.  Let’s have a look, but first…



From time to time  Lenovo sends me a gadget. They’re handy to have around – both for my own use and when trying to help out in the Lenovo forums. I do some testing and writing as well. Beyond the use of the laptop, I’m not otherwise compensated. Professional images are Lenovo’s.  Amateur snapshots are mine.  Opinions are exclusively mine.  I do not work for, represent, or speak for Lenovo.



I’ve done my best to gather accurate information, but things are subject to change and correction.  Please double-check anything I say here before using it to make a purchase decision.





Base Specifications:



A snip from Lenovo’s sales data sheet:



[ ThinkPad X1 Yoga Gen 6 Datasheet - image Lenovo - partial/edited ]




The PSREF pages, and base specification PDF:



https://psref.lenovo.com/Product/ThinkPad/ThinkPad_X1_Yoga_Gen_6



https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_X1_Yoga_Gen_6/ThinkPad_X1_Yoga_Gen_6_Spec.pdf



Notes from Lenovo engineering:



  • Early documentation lists Bluetooth as 5.1.  It is 5.2.
  • RAM in all configurations runs dual-channel.
  • Even though it does not have a physical Ethernet port, the laptop has an Ethernet MAC address that’s presented via the Lenovo USB-C adapter (may not be included with the laptop).



[UPDATE]  Additional notes re storage options:



I've been digging, and here's what I think I know about the new X1 Yoga's storage.  There will be two tiers of performance: "standard" gen 3 and gen 4 SSDs that are in the same performance class as the current PCIe 3.0x4 SSDs, and a "performance" tier that is gen 4 only and runs at roughly twice the speed of the current gen 3 offerings.  These higher performing SSDs will be classified as "PCIe 4.0x4 performance" or "gen 4 performance" in their descriptions.  A specific model (MT-M) with "standard" storage may ship with either a gen 3 or 4 SSD.  Performance will be roughly the same for either of the standard SSDs. I do not speak for Lenovo.



The ports:




[ ThinkPad X1 Yoga Gen 6 Ports - image Lenovo - partial/edited ]




Generational Changes:



Apart from slight differences in the range of options, and the lid logo, the Gen 4 and Gen 5 X1 Yogas were twins.  The Gen 6 is a major overhaul, upgrade, and re-engineering.  What’s changed?  TLDR: everything



Display aspect ratio, docking, CPU options, RAM performance and capacity, storage performance, human interaction options – to name a few of the notable changes.



Perhaps the biggest change – across a range of new ThinkPad models – is the switch to a 16×10 display.  For years many of us have wished for more vertical pixels (for that reason a WQHD display has been my sweet spot) and at long last our prayers have been answered.  This is a big deal.  Also a big deal: 2TB gen-4 NVMe SSD options.  Lots of storage – and crazy fast.



The ports have changed too – see above.  They are no longer side-dock compatible so docking solutions will be Thunderbolt 4 most likely, and there’s no proprietary Ethernet port.  Most users won’t miss that latter, but a few of us do occasionally need wired connections – so USB-C or 3.0 dongles, or perhaps via a dock.  Per Lenovo engineering: the laptop has an Ethernet MAC address that is presented if the USB-C adapter is used.



What hasn’t changed is that solid “carved out of solid ThinkPadium” feel (it’s aluminum), excellent keyboard,  and the mandatory-for-a-ThinkPad TrackPoint and buttons.  The touchpad is a bit wider now, but personally, I’m indifferent.  Not a touchpad user.



A few of the notable changes from Gen 5 to Gen 6 – maximum options shown, not all models will have these specifications.  Gen 6 in italics.



Processor:

  • 10th Generation Intel® Core™ i5 / i7 Processor
  • 11th Generation Intel® Core™ i5 / i7 Processor



Graphics:

  • Intel UHD Graphics
  • Intel Iris Xe Graphics



Display:

  • 14.0″ UHD (3840×2160) Multi-touch IPS 500 nits, Anti-reflection Anti-smudge, Aspect Ratio 16:9, Contrast Ratio 1500:1, Color Gamut 90% DCI-P3, Viewing Angle 170°, Dolby Vision™ HDR 400
  • 14.0″ UHD+ (3840×2400) Multi-touch IPS 500 nits, Anti-reflection Anti-smudge, Aspect ratio 16:10, Contrast Ratio 1500:1, Color Gamut 100% DCI-P3, Viewing Angle 170°, Low blue light



Monitor support:

  • Supports up to 3 independent displays via native display and 2 external monitors; supports external monitors via HDMI® (up to 4K@24Hz) or Thunderbolt™ (up to 5K@60Hz)
  • Supports up to 4 independent displays via native display and 3 external monitors; supports external monitors via Thunderbolt™ (5K@60Hz) or HDMI® (up to 4K@60Hz)



Memory (soldered – no slots, runs dual-channel):

  • LPDDR3-2133 – maximum 16GB
  • LPDDR4x-4266 – maximum 32GB



Storage:

  • M.2 2280 SSD – PCIe NVMe, PCIe 3.0 x4
  • M.2 2280 SSD – PCIe NVMe, PCIe 4.0 Performance



Ethernet:

  • Gigabit Ethernet, Intel Ethernet Connection I219-V or -LM, RJ45 via optional ThinkPad Ethernet Extension Adapter Gen 2
  • NONE: Ethernet support via optional Lenovo USB-C to Ethernet Adapter (may not be included with the Laptop). MAC address supported.



WWAN:

  • Fibocom L850-GL 4G LTE-A
  • Qualcomm Snapdragon X55 5G LTE (not yet available from Sales or in PSREF specs)



Ports:

  • 1x USB 3.2 Gen 1, 1x USB 3.2 Gen 1 (Always On), 2x USB-C 3.2 Gen 2 / Thunderbolt 3 (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.2),1x HDMI 1.4b,1x Ethernet extension connector, 1x headphone / microphone combo jack (3.5mm), 1x side docking connector
  • 1x USB 3.2 Gen 1, 1x USB 3.2 Gen 1 (Always On), 2x Thunderbolt 4 / USB4™ 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4a), 1x HDMI 2.0, 1x headphone / microphone combo jack (3.5mm)



In addition to the above differences, there are slight differences in weight and dimensions. Fans (two now) exhaust via read vents.  More significant is the addition of HPD (human presence detection) as an option in the Gen 6.  It can provide enhanced security, convenience  (and perhaps complication) to user interaction.  This bears – and will receive – further examination.



Some amateur pics to show the differences in ports and dimensions:





[ ThinkPad X1 Yoga Gens 5 & 6 (left) Height ]

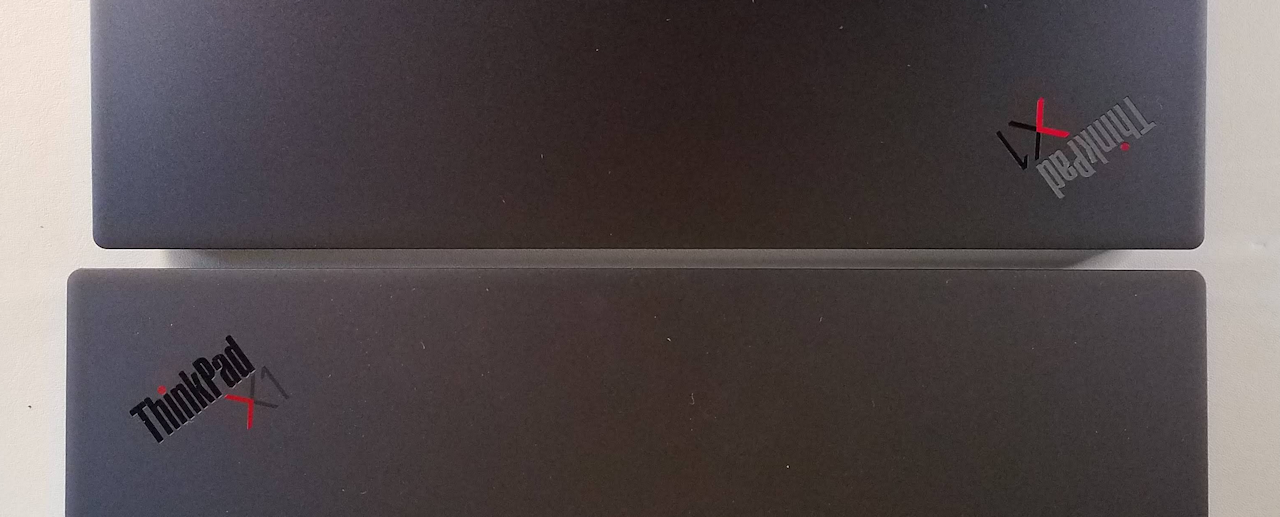

[ ThinkPad X1 Yoga Gens 5 & 6 (top) Width ]

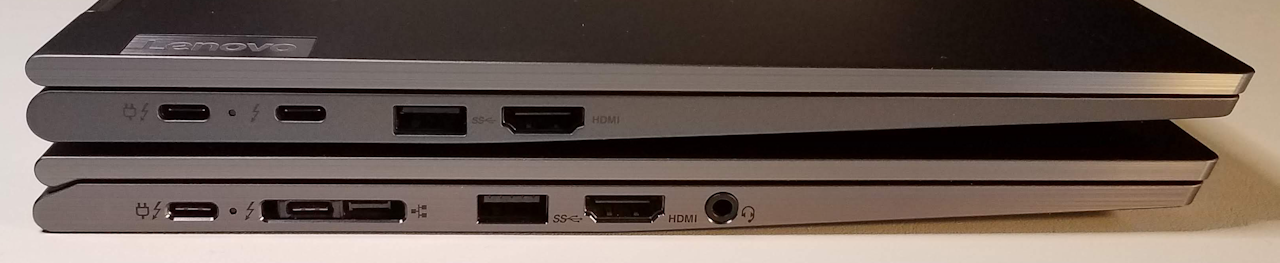

[ ThinkPad X1 Yoga Gens 5 & 6 (top) Left ]







[ ThinkPad X1 Yoga Gens 5 & 6 (top) Right ]

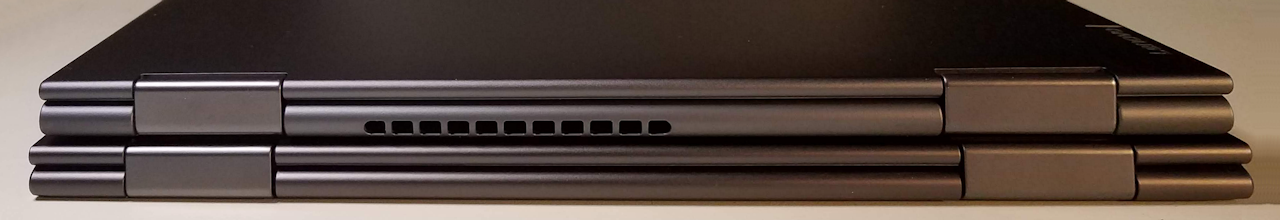

[ ThinkPad X1 Yoga Gens 5 & 6 (top) Rear ]





Bonus pic: Top view of the Gen 6 with its compact USB-C charger, a (purchased separately) Lenovo 65W GaN “wall wart” USB-C charger, and a USB-C to micro-USB adapter.  With the wall-wart and adapter in my backpack, I can charge most anything including my Yoga Tab 3 Pro and brand “S” phone.



[UPDATE]   The corded charger below will charge the laptop, and a Yoga  Tab 3 Pro and brand “S” phone via the micro-USB adapter.  Unfortunately the wall-wart will charge the laptop and phone, but not the tablet.  Unclear which end  is the problem.  A little disappointing, and bears further research.





[ ThinkPad X1 Yoga Gen 6 Top and Chargers ]





This Gen 6’s Detailed Specifications:



TLDR: maxed out



Please note that this is a pre-production machine.   It has some features that are not yet available on the sales site – or in the PSREF specifications.  These are the specs of the machine actually on my bench, but I don’t/can’t/won’t make any promises about what will eventually be available to the general public.  32GB RAM, Gen 4 SSD, and 5G LTE are not generally available as of this writing.  I do not speak for Lenovo.



  • Model:  20Y0Z8ZAUS (not in the PSREF pages)
  • Product:  ThinkPad X1 Yoga (6th Gen)
  • Processor:  Intel Core i7-1185G7 (4C / 8T, 1.8 / 4.8GHz, 12MB, vPro)
  • Graphics:  Integrated Intel Iris Xe Graphics
  • Chipset:  Intel SoC Platform
  • Memory:  32GB Soldered LPDDR4x-4266
  • Storage:  2TB SSD M.2 2280 PCIe Gen 4 NVMe OPAL2
  • Display:  14″ UHD+ (3840×2400 – 16×10) IPS 500 nits anti-reflection anti-smudge
  • Multi-touch:  10-point Multi-touch
  • Pen: Lenovo Integrated Pen (Garaged)
  • Ethernet:  NONE
  • WLAN + Bluetooth:  Intel Wi-Fi 6 AX201, Wi-Fi 2×2 802.11ax + Bluetooth 5.2
  • WWAN: Qualcomm Snapdragon X55 5G
  • Case Material:  Aluminum
  • Camera:  IR camera and HD720p camera with ThinkShutter
  • Audio:  Dolby Atmos speaker system, 2W x 2, 0.8 x 2 /
    four 360° far-field microphones, headphone / microphone combo jack, High Definition (HD) Audio, Realtek® ALC3306 codec
  • Color:  Storm grey
  • Keyboard:  Backlit, English
  • Fingerprint Reader:  Touch Style, Match-on-Chip, integrated with power button
  • TPM:  Discrete TPM 2.0
  • System Mgt:  Intel vPro Technology
  • Battery:  57Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
  • Power Adapter:  65W USB-C
  • Operating System:  Windows 10 Pro 64, English
  • BIOS Security:  Power-on password, Supervisor password, NVMe password, Self-healing BIOS
  • Other Security: Camera privacy shutter, IR camera for Windows Hello, Privacy Guard with Privacy Alert, Human Presence Detection





Major Components and Performance:

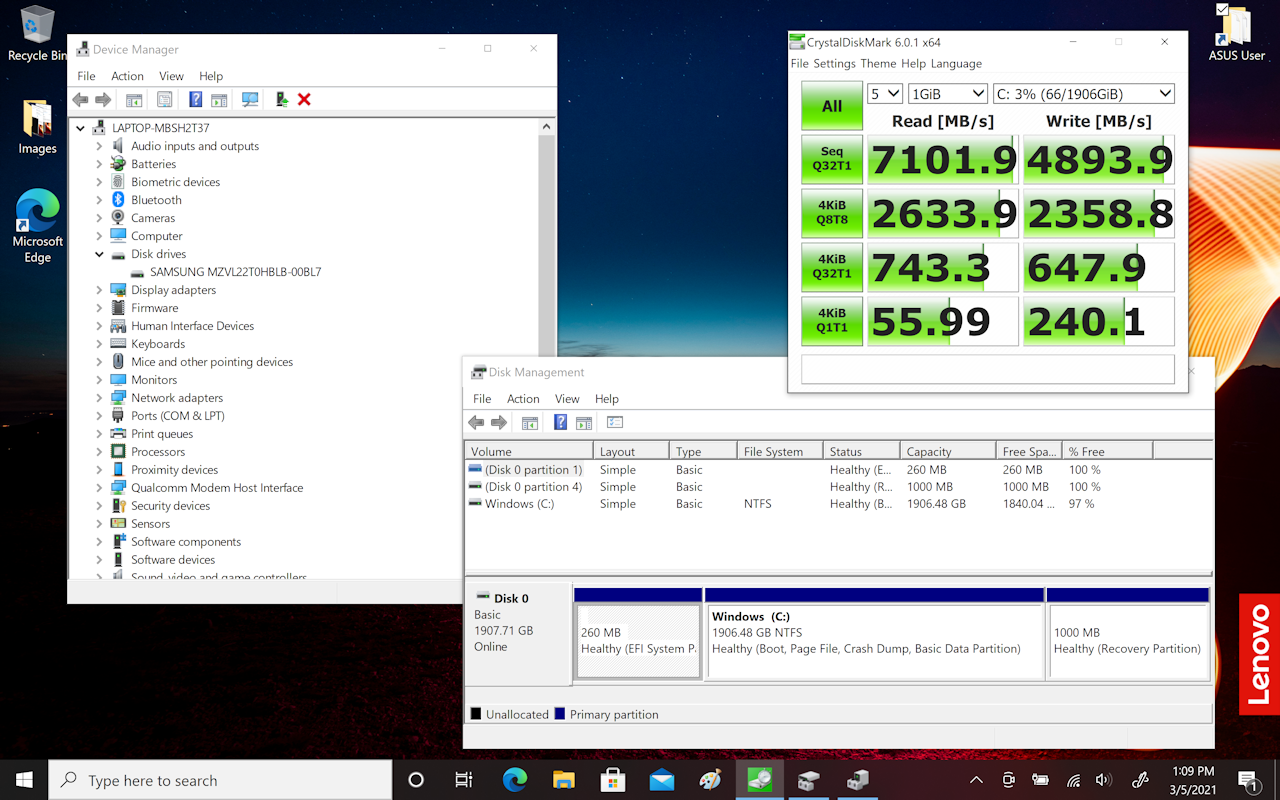

The Gen 4 SSD performance is off the chart!  Well, not literally… its still on the chart, but I’ve not seen speeds like this before.  Amazing.



Please note that not all Gen 6 Yogas will be configured with a Gen 4 SSD.  Some will be Gen 3. Verify before purchase.





[ X1 Yoga Gen 6 SSD DiskMark ]

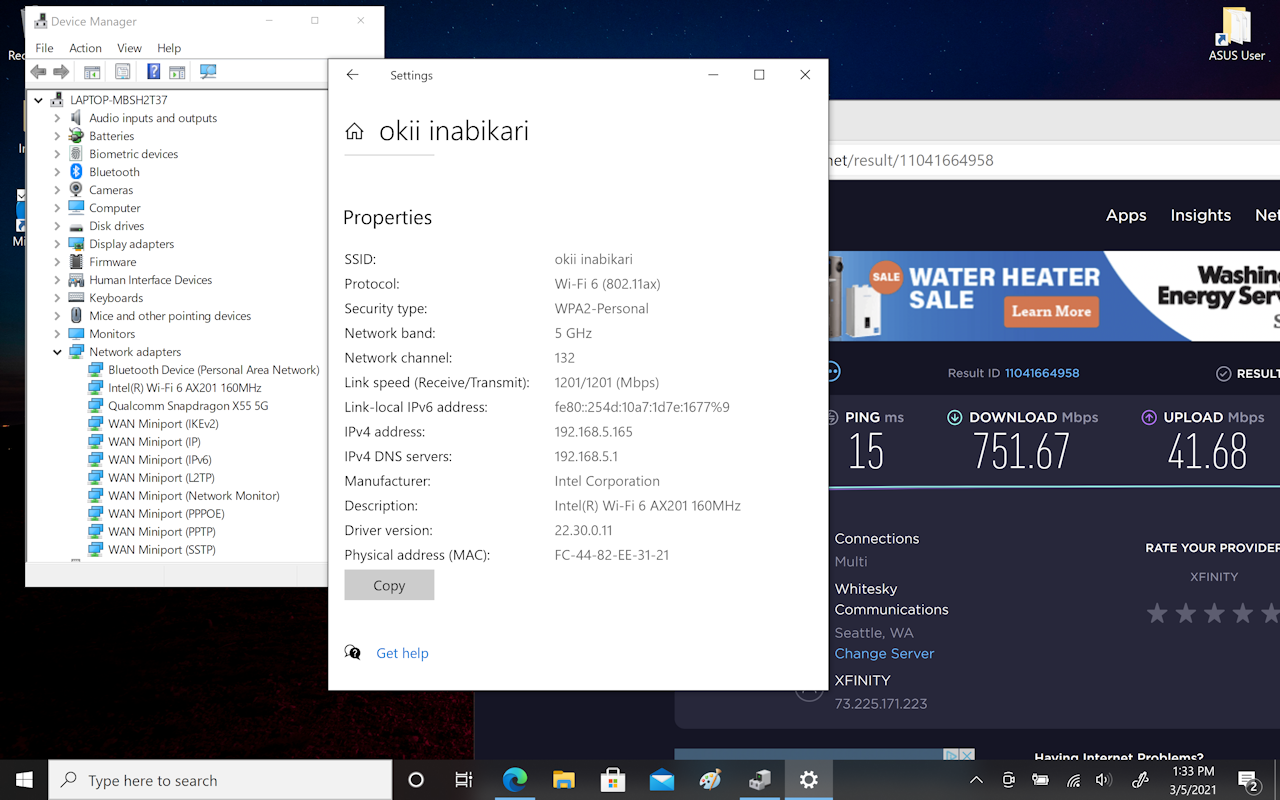

Wifi performance is fist-rate.  My router will actually support 2400mbps link speeds, and the earlier X1 Yogas will sometimes hit that.  I don’t think anything is amiss with the Gen 6.  It may be location re the router or something else. Will continue to monitor but for now it’s fine.  Can nearly max out my cable connection.





[ X1 Yoga Gen 6 Wifi Performance ]



Lastly, what PassMark thinks of the Gen 6.  I don’t generally run benchmarks and won’t try to interpret this.  Posting here for the interested reader.

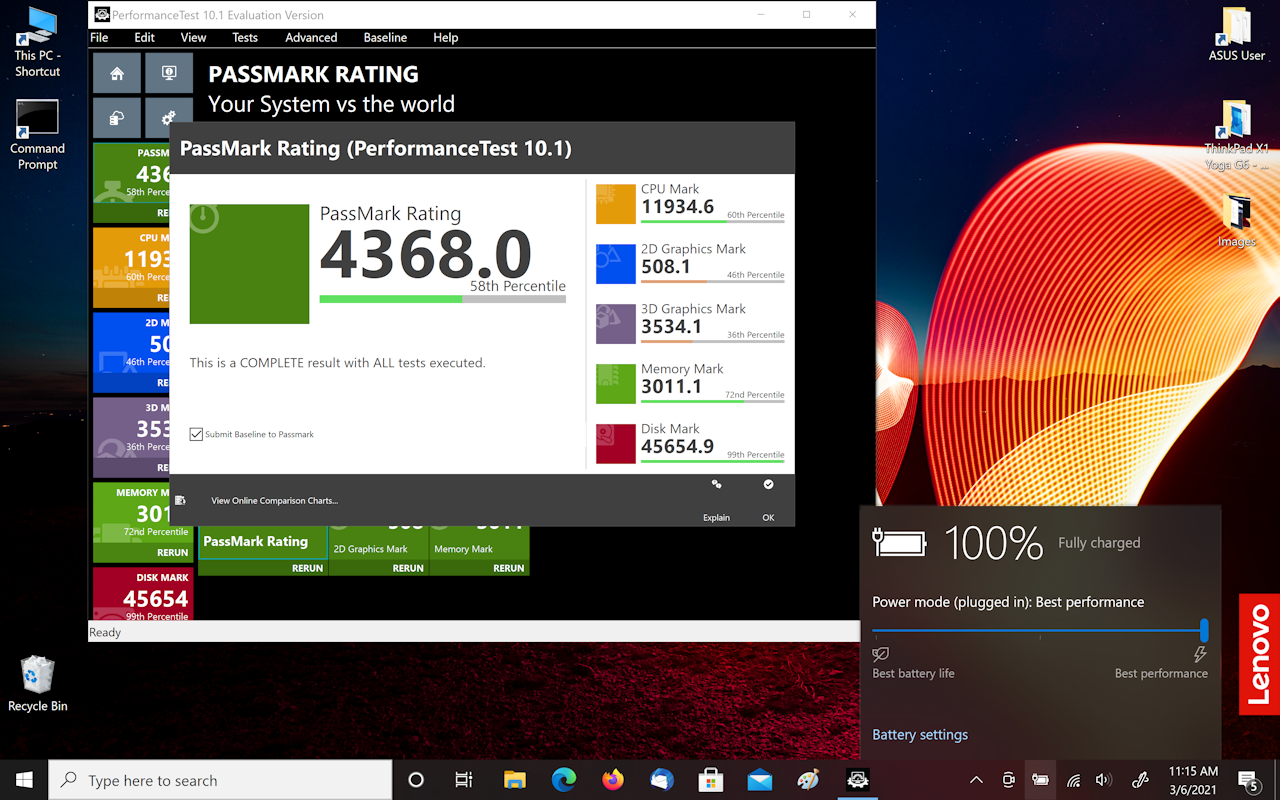

[ X1 Yoga Gen 6 PassMark ]

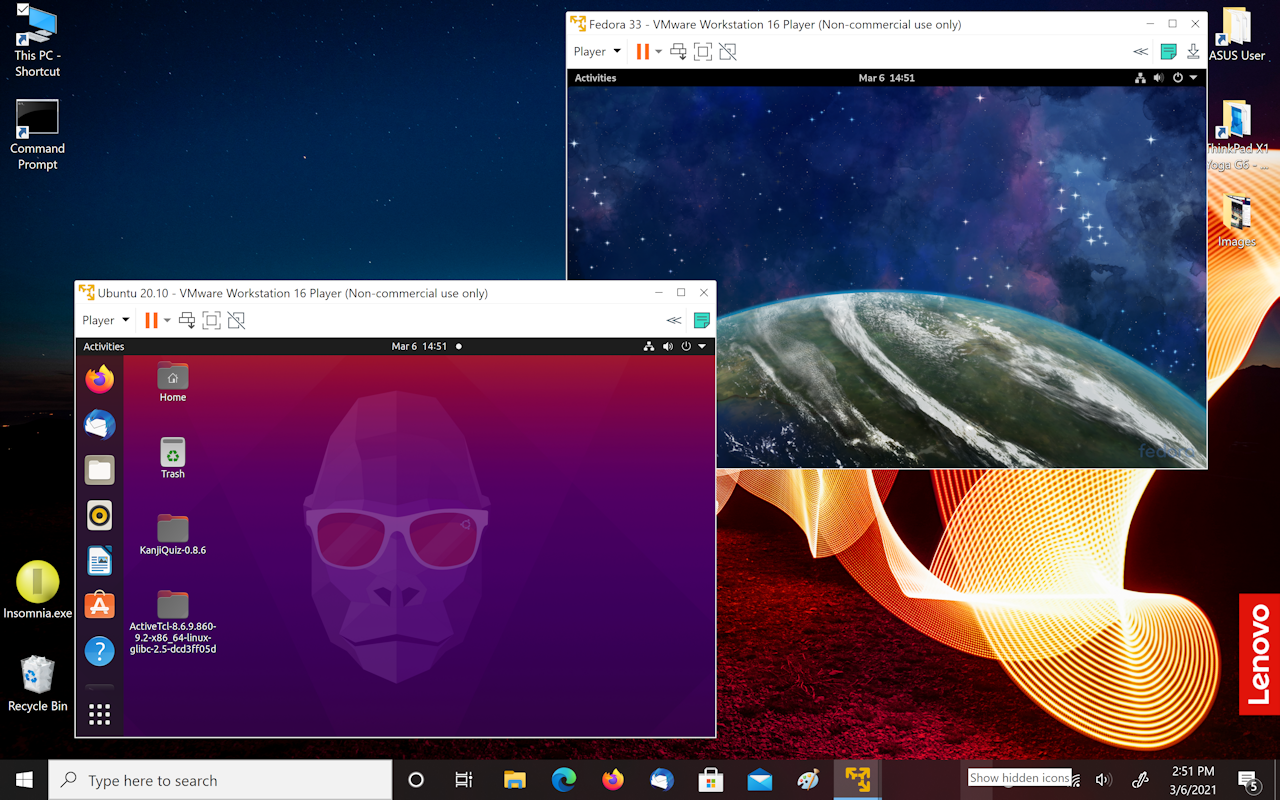

Virtualization:



That’s pretty much a given with modern CPUs.  This Gen 6 with its 32GB of RAM and 2TB of storage handles multiple VMs effortlessly.

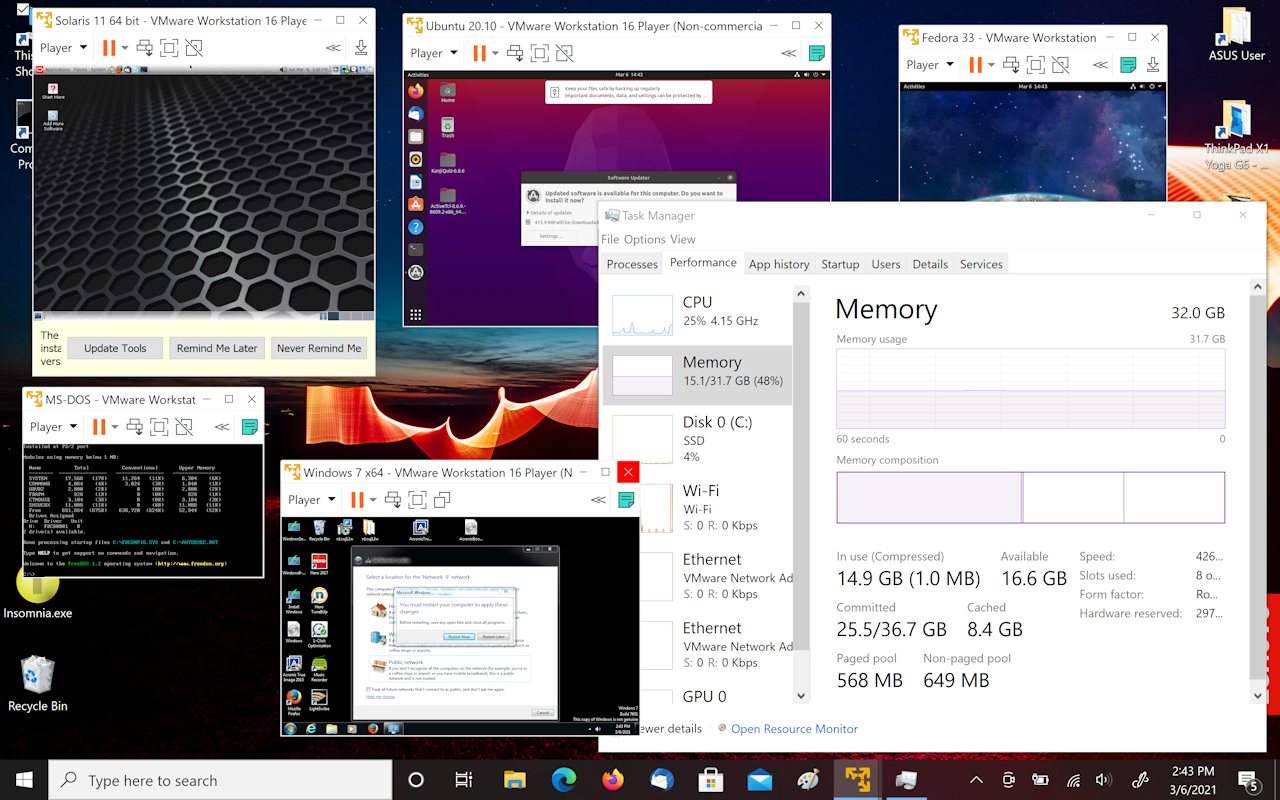

[ X1 Yoga Gen 6 Virtual Machines ]



You may notice a problem with these virtual clients: they’re so small as to be nearly unusable.  This is an issue with high-DPI displays.  Thankfully modern Linux distros like the ones I’m usually running have scaling options that can help with this.  For other/older OSen, it can be a real problem.  Some notes on that here: High DPI Displays and Scaling



Ubuntu and Fedora Linux VM clients with scaling in use:





[ X1 Yoga Gen 6 Virtual Machines Scaling ]





Battery Runtime:



Runtime.  Not “life”.  Runtime.



A not-terribly-scientific, but hopefully fairly accurate look at runtime under various loads.  My approach is to let each application run until the “gas gauge” settles down and then grab a screen shot.  Display brightness was about half, and if audio was playing it was set at “20”.



I’d call this pretty decent.  It’s not quite as good as my Gen 5 but it’s pushing a much higher resolution display, among other hardware differences.  The HPD feature with its quick and automatic sleep/wake seems to help with battery usage.  It snoozes when I turn away and wakes when I turn back.  Nearly instantly.





[ X1 Yoga Gen 6 Runtime Idle ]

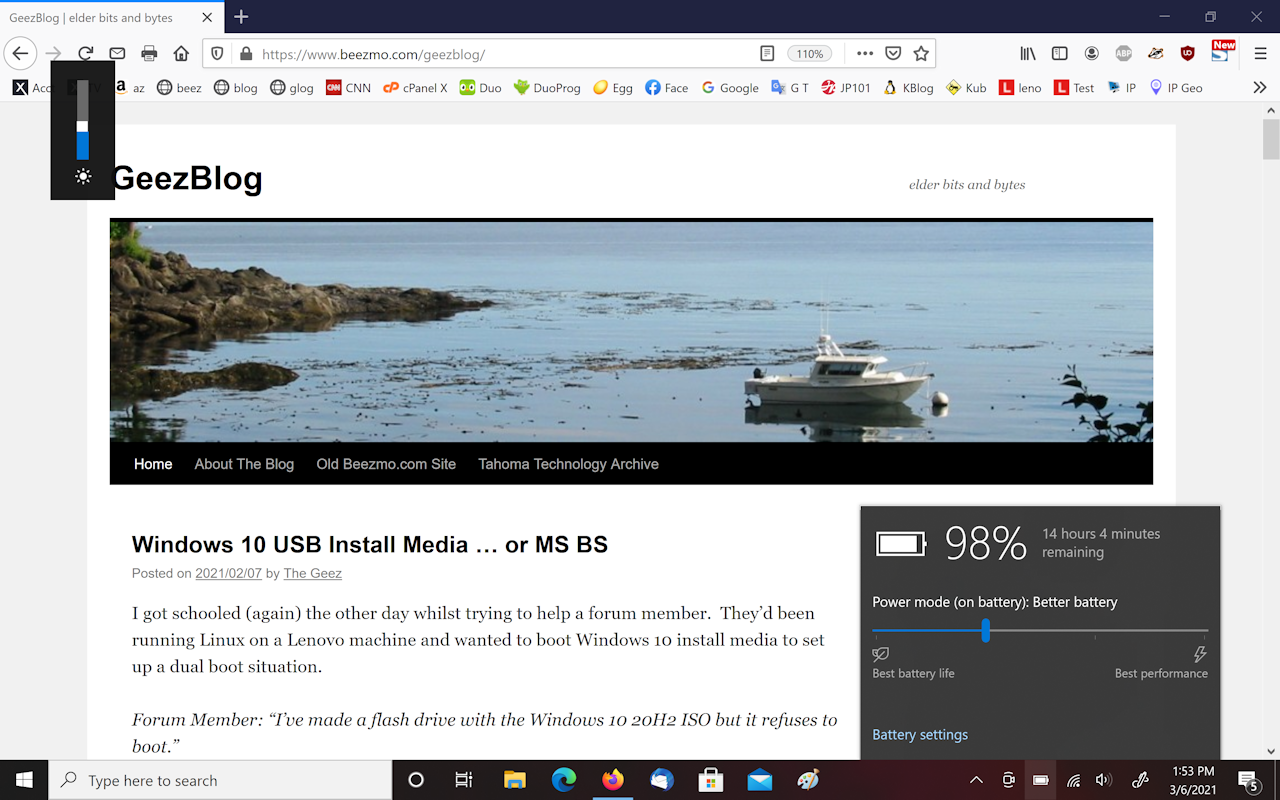

[ X1 Yoga Gen 6 Runtime Firefox ]

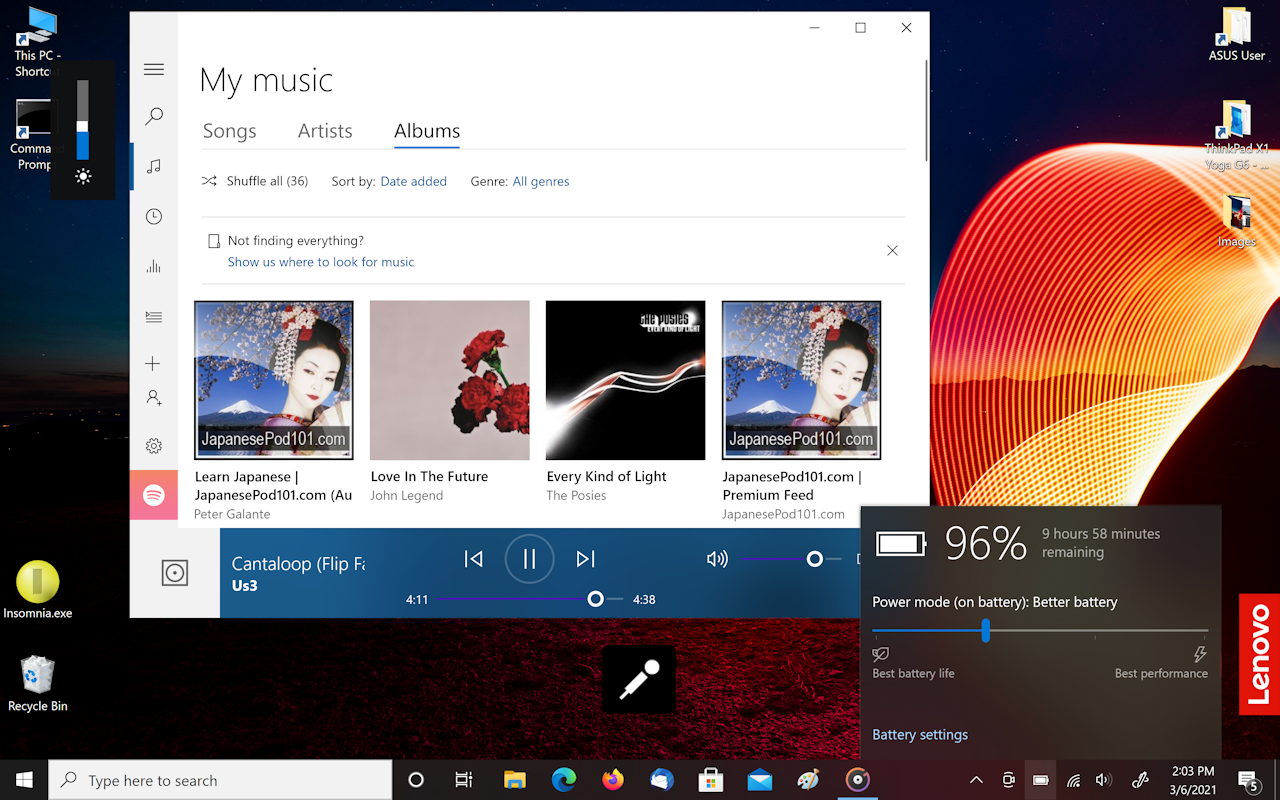

[ X1 Yoga Gen 6 Runtime MP3 ]

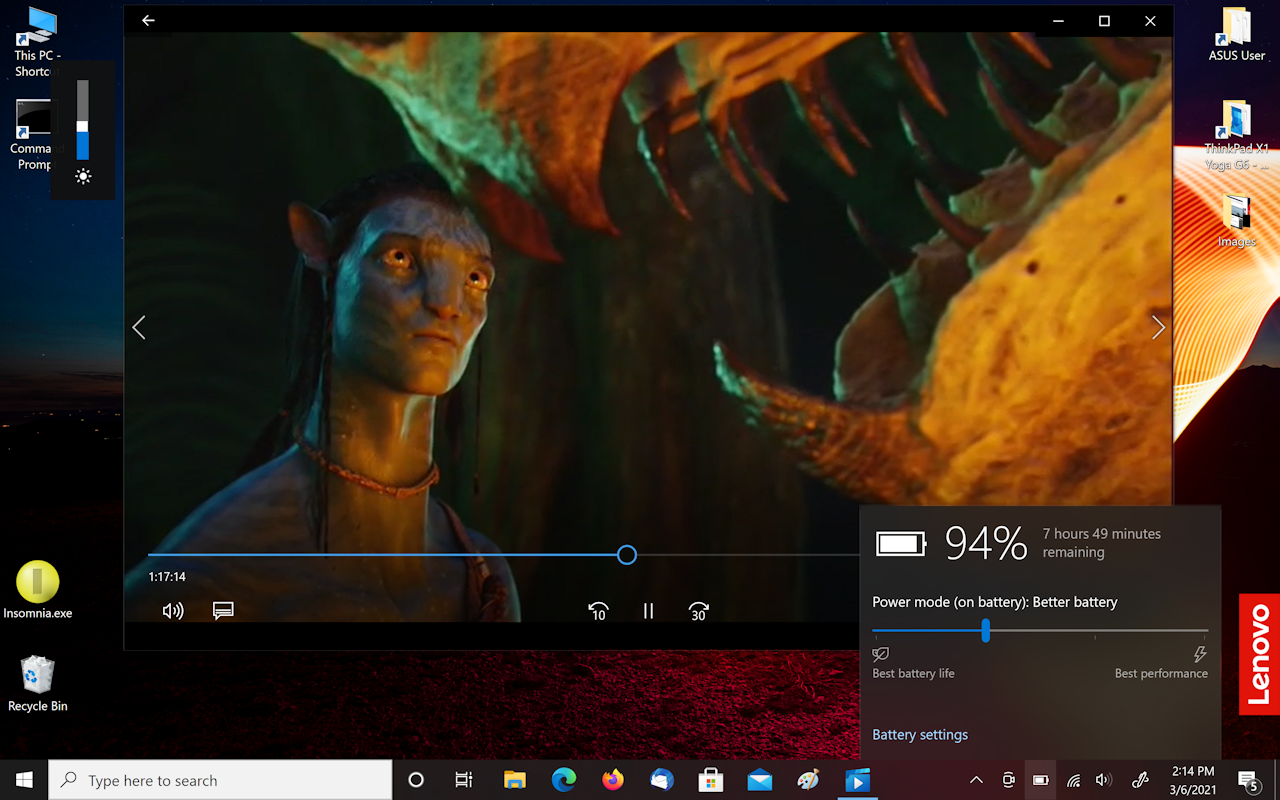

[ X1 Yoga Gen 6 Runtime MP4 ]

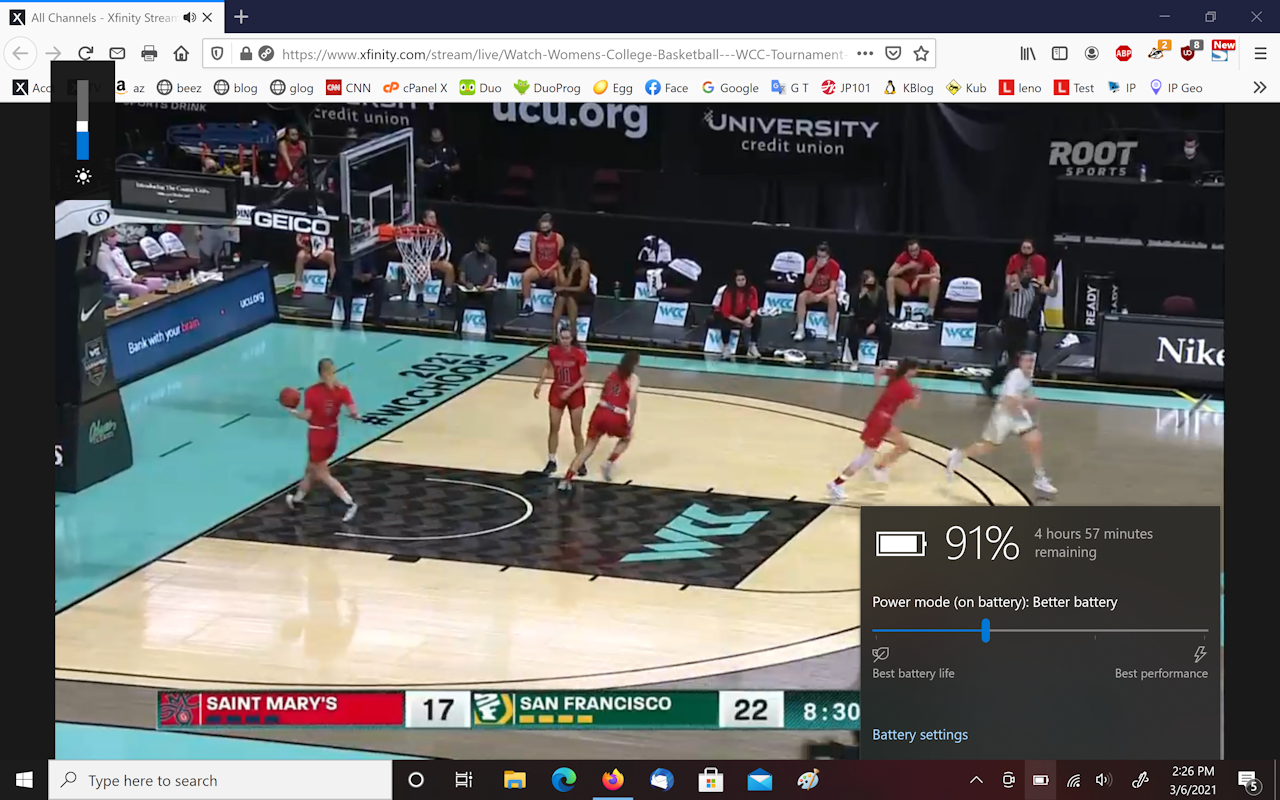

[ X1 Yoga Gen 6 Runtime Streaming Wifi ]





Final thoughts – for now:



This machine is too new to me to have many fully-ripened opinions.  First take is that it’s fantastic.  Quick and responsive. Long-wanted aspect ratio, lots of RAM, lots of really fast storage, decent CPU, and all that counted-on ThinkPad goodness.  5G LTE.  And some really interesting new features.



Planned follow-on articles will include Linux – live and installed – and a deeper look into new features like Dolby Voice and Human Presence Detection.  Quick take on that: it’s amazing… and a little surprising if you’re not expecting it.





Links:



Sales:



https://www.lenovo.com/us/en/laptops/thinkpad/thinkpad-x1/X1-Yoga-G6



The PSREF pages, and base specification PDF:



https://psref.lenovo.com/Product/ThinkPad/ThinkPad_X1_Yoga_Gen_6



https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_X1_Yoga_Gen_6/ThinkPad_X1_Yoga_Gen_6_Spec.pdf



Support Pages, User Guide, Hardware Maintenance Manual:



X1 Yoga 6th Gen (Type 20XY, 20Y0) Laptop (ThinkPad)

https://download.lenovo.com/pccbbs/mobiles_pdf/x1_carbon_gen9_x1_yoga_gen6_ug_en.pdf?linkTrack=PSP:ProductInfo:UserGuide



https://download.lenovo.com/pccbbs/mobiles_pdf/tp_x1_carbon_gen9_x1_yoga_gen6_hmm_en.pdf




The large print: please read the Community Participation Rules before posting. Include as much information as possible: model, machine type, operating system, and a descriptive subject line. Do not include personal information: serial number, telephone number, email address, etc.


The fine print: I do not work for, nor do I speak for Lenovo. Unsolicited private messages will be ignored - questions and answers belong in the forum so that others may contribute and benefit. ... GeezBlog



Communities: English Deutsch Español Português Русскоязычное Česká Slovenská Українська Polski Türkçe Moto English

Reply
Options

2533 Posts

01-08-2021

Philippines

179 Signins

12780 Page Views

  • Posts: 2533
  • Registered: ‎01-08-2021
  • Location: Philippines
  • Views: 12780
  • Message 2 of 29

Re:ThinkPad X1 Yoga Gen 6: Future Perfect?

2021-03-15, 17:09 PM

Hello zoltanthegypsy,




Thank you for sharing this one.

Fellow users and forum subscribers will surely learn a lot from this thread.





Best regards,
Lorenzo_Lenovo



Did someone help you today? Press the star on the left to thank them with a Kudo!
If you find a post helpful and it answers your question, please mark it as an "Accepted Solution"! This will help the rest of the Community with similar issues identify the verified solution and benefit from it.

Follow us @LenovoSupport on Facebook and Twitter!

Reply
Options

38 Posts

09-13-2018

Luxembourg

45 Signins

405 Page Views

  • Posts: 38
  • Registered: ‎09-13-2018
  • Location: Luxembourg
  • Views: 405
  • Message 3 of 29

Re:ThinkPad X1 Yoga Gen 6: Future Perfect?

2021-03-15, 18:14 PM

Hello,

Thank you for sharing.

I have been really waiting for the gen 6 release for a few months now and was hoping to buy it with 5G (or at least 4G) ... but it is not available in Europe ... psref does actually not reference any model with LTE support ... that is really disappointing:

ThinkPad_X1_Yoga_Gen_6_Spec.pdf (lenovo.com)

no 5G & 4G support mentionned ...



I also hope that it will be available with a matte touchscreen because I really don't like glossy screens.



May I ask which monitor/screen and resolution you have tested, is it glossy or matte?



Thank you!

Didier

Reply
Options

9150 Posts

01-13-2008

United States of America

77956 Signins

2236190 Page Views

  • Posts: 9150
  • Registered: ‎01-13-2008
  • Location: United States of America
  • Views: 2236190
  • Message 4 of 29

Re:ThinkPad X1 Yoga Gen 6: Future Perfect?

2021-03-15, 19:15 PM

Hi Didier,



The monitor I have is UHD+ (3840×2400 – 16×10) IPS 500 nits anti-reflection anti-smudge.  I'm not sure it falls into either the glossy or matte classification, strictly speaking.



5G LTE is mentioned in that sales PDF, so my guess is that it will be available at some point, but no idea when.  That it is present in the machine on my bench gives me hope :)  I don't speak for Lenovo.



Sorry I can't give you more concrete answers,

Z.


The large print: please read the Community Participation Rules before posting. Include as much information as possible: model, machine type, operating system, and a descriptive subject line. Do not include personal information: serial number, telephone number, email address, etc.


The fine print: I do not work for, nor do I speak for Lenovo. Unsolicited private messages will be ignored - questions and answers belong in the forum so that others may contribute and benefit. ... GeezBlog



Communities: English Deutsch Español Português Русскоязычное Česká Slovenská Українська Polski Türkçe Moto English

Reply
Options

9150 Posts

01-13-2008

United States of America

77956 Signins

2236190 Page Views

  • Posts: 9150
  • Registered: ‎01-13-2008
  • Location: United States of America
  • Views: 2236190
  • Message 5 of 29

Re:ThinkPad X1 Yoga Gen 6: Future Perfect?

2021-03-15, 20:25 PM

ThinkPad X1 Yoga 6th Gen (Type 20XY, 20Y0) Laptop Removal and Replacement Videos:



https://support.lenovo.com/solutions/HT511925


The large print: please read the Community Participation Rules before posting. Include as much information as possible: model, machine type, operating system, and a descriptive subject line. Do not include personal information: serial number, telephone number, email address, etc.


The fine print: I do not work for, nor do I speak for Lenovo. Unsolicited private messages will be ignored - questions and answers belong in the forum so that others may contribute and benefit. ... GeezBlog



Communities: English Deutsch Español Português Русскоязычное Česká Slovenská Українська Polski Türkçe Moto English

Reply
Options

30 Posts

05-30-2018

Australia

31 Signins

265 Page Views

  • Posts: 30
  • Registered: ‎05-30-2018
  • Location: Australia
  • Views: 265
  • Message 6 of 29

Re:ThinkPad X1 Yoga Gen 6: Future Perfect?

2021-04-01, 8:10 AM

Yeah I'm awaiting the 5G model - it's been out for a little while now, but the configuration still doesn't allow for the 5G to be built into the laptop.

Reply
Options

73 Posts

11-19-2009

North Carolina

89 Signins

924 Page Views

  • Posts: 73
  • Registered: ‎11-19-2009
  • Location: North Carolina
  • Views: 924
  • Message 7 of 29

Re:ThinkPad X1 Yoga Gen 6: Future Perfect?

2021-04-08, 14:17 PM

I wonder when the Customize option will be available?

I would like to get to 32GB RAM (my gen 3 has the 16GB their builds are offering) and at least 1 TB disk (again, my gen 3 has, but their builds don't offer.)  I must have LTE, which is what always drives me up from the Yoga line to the X1 Yoga line.





Reply
Options

30 Posts

05-30-2018

Australia

31 Signins

265 Page Views

  • Posts: 30
  • Registered: ‎05-30-2018
  • Location: Australia
  • Views: 265
  • Message 8 of 29

Re:ThinkPad X1 Yoga Gen 6: Future Perfect?

2021-04-08, 14:20 PM

Looks like the WWAN options are now available in Australia. No prebuilt models however.



Seems like the US only has prebuilt, and no CTO models.

Reply
Options

73 Posts

11-19-2009

North Carolina

89 Signins

924 Page Views

  • Posts: 73
  • Registered: ‎11-19-2009
  • Location: North Carolina
  • Views: 924
  • Message 9 of 29

Re:ThinkPad X1 Yoga Gen 6: Future Perfect?

2021-04-09, 15:47 PM

Customize is there now, with the added memory to 32GB and SSD to 1TB.



No WWAN yet though... :(



-Michele

Reply
Options

73 Posts

11-19-2009

North Carolina

89 Signins

924 Page Views

  • Posts: 73
  • Registered: ‎11-19-2009
  • Location: North Carolina
  • Views: 924
  • Message 10 of 29

Re:ThinkPad X1 Yoga Gen 6: Future Perfect?

2021-04-23, 16:57 PM
And now there is a WWAN option, although I'm used to it saying what hardware, it just says WWAN.
Reply
Forum Home

Community Guidelines

Please review our Guidelines before posting.

Learn More

Check out current deals!

Go Shop
X

Save

X

Delete

X

No, I don’t want to share ideas Yes, I agree to these terms
