Thunderbolt Controller Missing

2019-09-10, 3:33 AM

I have an X380 and my thunderbolt port stopped working recently. I've found that the thunderbolt controller seems to be entirely missing from my laptop somehow. It doesn't show up in device manager at all.



I uninstalled the thunderbolt software and reinstalled it but that asn't helped. I'm getting an "0x20C SDK_NO_DEVICES" error when I try to install the new TB firmware that's supposed to fix it. Anyone know how to get the controller back? Should I be deleting old firmware folders?

Reply
Options

2 Posts

06-27-2019

US

5 Signins

53 Page Views

  • Posts: 2
  • Registered: ‎06-27-2019
  • Location: US
  • Views: 53
  • Message 2 of 9

Re: Thunderbolt Controller Missing

2019-09-10, 21:15 PM

I have a T580 and a thunderbolt 3 gen 2 dock (that has been working for me for over a month).

I am now experiencing similar issues.

I was eferrred to this link: https://pcsupport.lenovo.com/us/en/solutions/ht508988

Sadly, the T580 is listed as 'pending' but maybe it will work for you?

If you find a solution, please let me know.  My IT deptartment has not been able to figure out how to force-install the firmware...  my Thunderbolt software is up-to-date (reinstalled multiple times).  Everything we've tried has failed.

Reply
Options

8 Posts

03-03-2019

CA

42 Signins

216 Page Views

  • Posts: 8
  • Registered: ‎03-03-2019
  • Location: CA
  • Views: 216
  • Message 3 of 9

Re: Thunderbolt Controller Missing

2019-09-10, 21:17 PM

I saw that link but I can't install any of those since my thunderbolt controller has entirely disappeared. I keep getting an error saying that there is no thunderbolt controller or software when I try to install

Reply
Options

34 Posts

10-29-2017

US

151 Signins

960 Page Views

  • Posts: 34
  • Registered: ‎10-29-2017
  • Location: US
  • Views: 960
  • Message 4 of 9

Re: Thunderbolt Controller Missing

2019-09-15, 1:47 AM

I've had this problem numerous times on my x1 extreme.   I think resetting the button on the bottom of the laptop (via paper clip) has helped.

Reply
Options

2 Posts

06-27-2019

US

5 Signins

53 Page Views

  • Posts: 2
  • Registered: ‎06-27-2019
  • Location: US
  • Views: 53
  • Message 5 of 9

Re: Thunderbolt Controller Missing

2019-09-18, 15:37 PM

I've tried resetting with the pinhole on the bottom of my T580.

That has not worked.

Reply
Options

2 Posts

02-09-2018

US

5 Signins

29 Page Views

  • Posts: 2
  • Registered: ‎02-09-2018
  • Location: US
  • Views: 29
  • Message 6 of 9

Re: Thunderbolt Controller Missing

2019-10-06, 18:29 PM

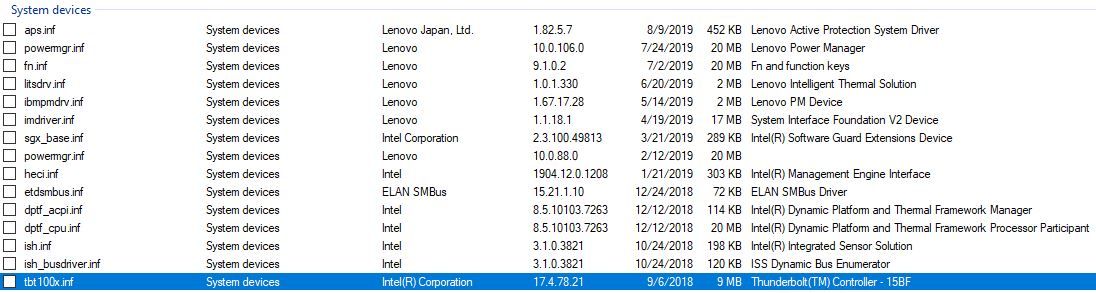

Before giving up entirely on the Thunderbolt controller, try DriverStore Explorer. For some odd reason when my X380 has no Thunderbolt device plugged in, it is also absent in Device Manager. But as you can see in this screencap, the Thunderbolt controller (and the correct driver .inf file -- tbt100x.inf) DOES show up in RAPR.exe/DriverStore Explorer (in greyed-out form to show no active connection).

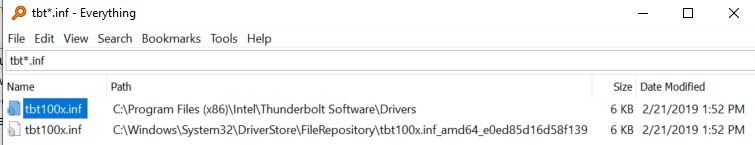

My best guess is that if you hooked a Thunderbolt device up, it would indeed then show up in Device Manager. It is definitely there on my X380 as  a search for tbt100x.inf confirms:

HTH,

--Ed--



Download DriverStore Explorer/RAPR.exe from https://github.com/lostindark/DriverStoreExplorer/releases

Reply
Options

8 Posts

03-03-2019

CA

42 Signins

216 Page Views

  • Posts: 8
  • Registered: ‎03-03-2019
  • Location: CA
  • Views: 216
  • Message 7 of 9

Re: Thunderbolt Controller Missing

2019-10-06, 22:22 PM

Thanks for the suggestion but I've managed to fix it. Turns out that Lenovo had bungled the thunderbolt firmware a few weeks ago and when I tried to update it the thunderbolt controller somehow deleted itself instead. Refreshing windows fixed the issue

Reply
Options

12 Posts

04-12-2018

US

18 Signins

156 Page Views

  • Posts: 12
  • Registered: ‎04-12-2018
  • Location: US
  • Views: 156
  • Message 8 of 9

Re:Thunderbolt Controller Missing

2020-05-16, 23:34 PM

I'm suffering from the infamous "missing Thunderbolt controller" issue.  What do you mean when you say you "refreshed windows"? Uninstalled and reinstalled? etc. I'm keen on resolving this "missing controller" issue as I think it is the root cause as to why my HDMI port is not working.



Cheers,

Jet

Reply
Options

3 Posts

08-18-2015

US

4 Signins

36 Page Views

  • Posts: 3
  • Registered: ‎08-18-2015
  • Location: US
  • Views: 36
  • Message 9 of 9

Re:Thunderbolt Controller Missing

2020-05-27, 18:13 PM

I'm having the same issue on my X280.  Thunderbolt update yesterday has hosed my system and I can no longer charge the laptop with the 65w charger and the dock does not transmit any video.
